This project is the product of the combined efforts of many interdisciplinary researchers of various expertise and was initiated by:
Farming carbon via tree plantings on pasture land is becoming increasingly common to address the effects of climate change. This activity is likely to produce dramatic changes in Australia's rural landscapes, but we have little knowledge of likely effects on crucial ecosystem services and attributes such as stream water yields and biodiversity. This project investigates the relationship between tree cover, carbon uptake, water yield and biodiversity. The outcomes will allow government agencies, landowners and carbon farming groups to better evaluate the effects of different landscape planning options and contribute to effective long-term planning for multiple goals. The site was established in October 2011 as part of an ARC Linkage project "More bang for your carbon buck: carbon, biodiversity and water balance consequences of whole-catchment carbon farming" (LP0990038) Dr Ross Michael Thompson, A/Prof Jason Beringer, Dr Timothy Richard Cavagnaro, Prof Ralph Charles Mac Nally, Dr Patrick John Baker, Mr Mark Eigenraam, Mr Leon Metzeling. The research is funded through an ARC Linkage grant, in conjunction with generous contributions from the Victorian Department of Sustainability, Catchmetn Management Authorities, EPA Victoria and Kilter Pty Ltd. The tower will provide longterm measurements as part of the Ozflux network and the infrastructure is partly funded through the NCRIS TERN OzFlux and Supersite facilities.
The Riggs Creek flux station is located within the Goulburn-Broken catchment, approximately 40km south east of Shepparton, Victoria and is located in Goulburn-Broken catchment in North-Eastern Victoria: -36.6499 S 145.5760 E.

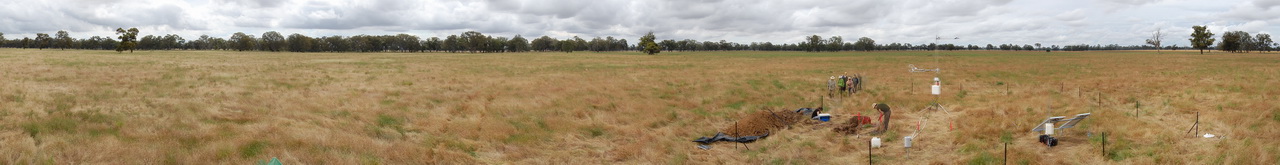

The flux tower site is located within an area of dryland agriculture. The surrounding area is dominated by broadacre farming practices. The vegetation cover is predominantly pasture. Elevation of the site is close to 152m and mean annual precipitation at a nearby Bereau of Meteorology site measures 650mm.
Maximum temperatures range from 12.3?C (in July) to 29.7?C (in February), while minimum temperatures range from 10.4?C (in July) to 26.8?C (in February).
The instrument mast is 4 meters tall. Heat, water vapour and carbon dioxide measurements are taken using the open-path eddy flux technique. Temperature, humidity, wind speed, wind direction, rainfall and net radiation are measured. Soil heat fluxes are measured and soil moisture content is gathered using time domain reflectometry.
Data from this site is available through the OzFlux data portal international FLUXNET database or via the investigators email jason.beringer[@]uwa.edu.au
This site is produced by Prof. Jason Beringer, UWA, School of Agriculture and Environment and proudly part of the Australian Flux Network(OzFlux) and supported by the Australian NCRIS Terrestrial Ecosystem Research Network (TERN). Australian Research Council grants supported this work (LP0990038 and FT110100602)
Instrument |
Make |
Model |
Description |
Atmospheric Pressure |
Vaisala |
CS106 |
2.5m |
Net Radiation |
Campbell Scientific |
CNR4 |
4m |
Data logger |
Campbell Scientific |
CR3000 |
Ground |
Open Path CO2 H2O |
LI-COR |
Li-7500 |
2.5m |
Rain gauge |
Campbell Scientific |
CS702 |
Ground |
Soil heat flux (two replicates) |
Hukseflux |
HFP01 |
0.1m |
Soil temperature |
Campbell Scientific |
TCAV-L |
0.08m |
Sonic anemometer |
Campbell Scientific |
CSAT3 |
2.5m |
Temperature and Relative Humidity (two replicates) |
Vaisala |
HMP45AC |
2.5m |
Soil Moisture (6 replicates) |
Campbell Scientific |
CS616 |
0.1, 0.2, 0.4, 0.8, 1.2, 2.0m |
This image is taken by a Vivotek Network Camera (IP8362) and is updated every 30 minutes. The timestamp is provided in Coordinated Universal Time (UTC).
The data was obtained from the Oak Ridge National Laboratory Distributed Active Archive Center for Biogeochemical Dynamics (ORNL DAAC) (https://daac.ornl.gov/MODIS/). The ORNL DAAC provides MODIS Land Product Subsets for model validation, site characterisation and remote-sensing purposes.
Daily updated data was obtained from this provider, with an area of 3x3km extracted using Python script written by Mr. Darien Pardinas-Diaz ([email protected]). The plots were produced using QC Filter Conditions 000 and 001. Condition 000 represents the highest QC Filter possible and 001 represents a reliable and usable QC Filter, though not to the standard of 000.
